Product category : Pipe Fitting

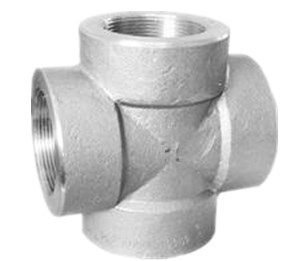

The product name : Forged Cross
Description :



Forming Type:
Forged.
Size:
1/8”-4”(DN6-DN100)
Standard:
ANSI B16.11 BS3799,
Material:
Stainless Steel, Nickel Copper, Carbon Steel, Low Alloy Steel, Alloy Steel.





            Socket Elbow                                              Socket Tee                                     Socket Cross



Nominal Diameter

Depth of Socket
Dimension
of Socket

Wall Thickness
Center to Bottom of Socket
A
Cmin

90°Elbow、Tee、Cross

45°Elbow
DN
NPS
Jmin

d1

3000LB
Sch80
6000LB
Sch160
9000LB
XXS
3000LB
Sch80
6000LB
Sch160
9000LB
XXS
3000LB
Sch80
6000LB
Sch160
9000LB
XXS
6
1/8
10
10.7
3.2
3.5
-
11
11
-
8
8
-
8 1/4 10 14.1 3.3 4.0 - 11 15 - 8 8 -
10 3/8 10 17.5 3.5 4.4 - 13 15 - 8 12 -
15 1/2 10 21.8 4.1 5.2 8.2 16 19 25 11 13 16
20 3/4 13 27.4 4.3 6.1 8.6 19 22 28 13 14 18
25 1 13 34.2 5.0 7.0 10.0 22 27 32 14 18 22
32 1.1/4 13 42.9 5.3 7.0 10.6 27 32 35 18 21 22
40 1.1/2 13 48.3 5.6 7.8 11.2 32 38 38 21 25 25
50 2 13 61.1 6.1 9.5 12.2 38 41 41 25 29 29
65 2.1/2 16 76.9(73.8) 7.7 12.5 - 41 57 - 29 32 -
80
3 16 89.8 8.3
13.8
-
57 64 -
32
35 -
100
4
19
115.5
9.4
-
-
66
-
-
42
-
-
