Product category : Pipe Fitting

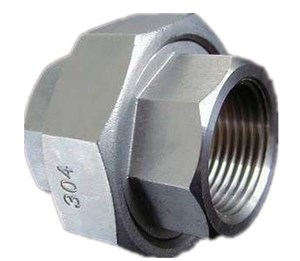

The product name : Union
Description :



Forming Type:
Forged.
Size:
1/8”-3”(DN6-DN80)
Standard:
ANSI B16.11 BS3799,MSS SP-97 , GB/T14626,HGJ529
Material:
Stainless Steel,  Carbon Steel,  Low Alloy Steel,  Alloy Steel, etc.







                       Socket  Union                                                                                 Threaded Union



Nominal Diameter
Outside Diameter
Wall Thickness
Socket Bore
Water way Bore
Depth of Socket
Length Assem
Nominal
Dmin
Cmin
d1
d2
Jmin
L
DN
NPS

Socket
Threaded
Socket
Threaded
Socket
Socket & Threaded
Socket
Socket & Threaded
6
1/8
21.8
14.7
3.2
2.5
10.65
6.43
10
41.4
8
1/4
21.8
19.0
3.3
3.1
14.10
9.45
10
41.4
10
3/8
25.9
22.9
3.5
3.2
17.55
13.51
10
46.0
15
1/2
31.2
27.7
4.1
3.8
21.70
17.07
10
49.0
20
3/4
37.1
33.5
4.3
4.0
27.05
21.39
13
56.9
25
1
45.5
41.4
5.0
4.6
33.80
27.74
13
62.0
32
11/4
54.9
50.5
5.3
4.9
42.55
35.36
13
71.1
40
11/2
61.5
57.2
5.6
5.1
48.65
41.20
13
76.5
50
2
75.2
70.1
6.1
5.6
61.10
52.12
16
86.1
65
21/2
91.7
85.3
7.7
7.1
73.80
64.31
16
102.4
80
3
109.2
102.4
8.4
7.7
89.80
77.27
16
109.0
