Product category : Pipe

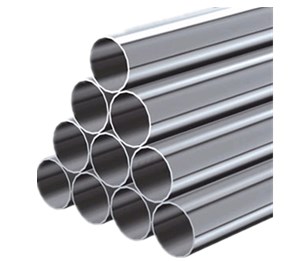

The product name : Seamless Pipe
Description :

Material:

TP304, TP304L, TP316, TP316L, TP316Ti,TP316LN, TP317, TP317L, TP321,TP310S,

Monel400, INCONEL600, 625, 617, 690,693, INCOLOY 800, 825, C276, N08028

API5LB, X42, X65, ASTM A 53: Gr. A, Gr B, ASTM A 106: Gr. A, Gr B

UNS S31803, S32205, S32750, S32760

Dimension

Diameter x Wall chickness

Seamless

6.0630x 0.530.0mm

Tolerances on dimensions table

Standard

Outside(mm)

Thickness(mm)

Length(mm)

ASTM A312

≤48.26

+0.40 -0.80

+No special provisions(Unspecified)

-12.50%

Appoint Length

Definite cut length

+6.40

-0

48.26~114.30

+0.80 -0.80

114.30~219.08

+1.60 -0.80

219.08~457.20

+2.40 -0.80

457~660

+3.20/-0.80

660~864

+4.00/-0.80

 864~1219

+4.48/-0.80

JIS G3459

30.00 ±0.30

≥30.00 ±1.00%

2.00 ±0.20

≥2.00 ±10%

Appoint Length

Definite cut Length

GB/T 12771

13.00 ±0.20

13.00~40.00 ±0.30

≥40.00 ±0.80%

≤4.00 +0.50 -0.60

4.00 ±10%

+20.00

-0

EN 10217-7

D1±1.50% with±0.75mm(min)

D2±1.00% with±0.50mm(min)

D3±0.75% with±0.30mm(min)

D4±0.5% with±0.10mm(min)

T1±15.00% with±0.60mm(min)

T2±12.5% with±0.40mm(min)

T3±10.00% with±0.20mm(min)

T4±7.50% with±0.15mm(min)

T5±5.00% with±0.10mm(min)

EN ISO 1127

≤6000 +5.00 -0

6000~12000 +10.00 -0
